60mm Casement Series

IS 12894 Certified

60mm Casement Series

The GBT 60mm Casement Series is the most versatile profile in the GBT range — a single system that covers casement windows, casement doors, and louver windows with the same base profile family. The 2.2mm wall thickness and side-hung opening mechanism provide excellent air and weather tightness, while the wider range of glazing options supports everything from budget residential to premium energy-rated projects.

Profile Width	60mm
Wall Thickness	2.2mm minimum
Tolerance	±0.2mm
Frame Code	60XK (Frame) / 60PKD (Sash)
Profile Length	5.9m
System Type	Casement (Side-Hung)
Applications	Windows, Doors & Louvers
Colour (Standard)	White
Co-Extrusion Colours	Black / Grey / Brown
BIS Standard	IS 12894
Estimated Lifespan	15+ Years

Request a Quote → Download Brochure

Why This Series

Engineered for Every Detail

Every aspect of the 60CS Series is designed to deliver reliable performance, safety, and long-term value.

3-in-1 Profile System

The same 60mm base profiles cover casement windows, casement doors, and louver windows — simplifying procurement, fabrication, and hardware specification across an entire project.

???

Superior Ventilation

The casement opening mechanism provides top-to-bottom ventilation across the full sash area — significantly better airflow than sliding windows of the same size.

Tight Multi-Point Sealing

The side-hung casement mechanism compresses EPDM gaskets on all four sides simultaneously — creating a continuous seal that outperforms sliding window tracks in water and air infiltration tests.

±0.2mm Precision

Wall thickness held at ±0.2mm across the full 60mm profile. Ensures consistent hardware fit, uniform gasket compression, and reliable weather performance across every fabricated unit.

100% Lead-Free

Calcium-zinc stabilized uPVC — completely free of lead compounds. Safe for homes, schools, hospitals, and public buildings. Fully compliant with IS 12894 and green building norms.

Zero Maintenance

No painting, oiling, or protective treatment required. The uPVC compound is termite-proof, rust-proof, and UV-stable — maintaining appearance and function for 15+ years.

Customise Your Profile

Glazing & Colour Options

60CS supports multiple glazing configurations and four colour finishes — giving architects and homeowners full creative flexibility.

Glazing Configurations

Four Glazing Choices

From standard single panes to double glazed units, the 60mm system accommodates a wide range of glass specifications for both budget and premium casement projects.

Code: 60DYA

Single Glazing — 4 / 5 / 6mm

Standard clear or tinted single glass. Most economical option for residential casement windows and doors with standard thermal requirements.

Code: 30YX / 80DYA

Intermediate Bead Options

Alternative single-glazing bead configurations for specific glass thicknesses and architectural requirements. Common in doors requiring thicker glass for safety compliance.

Code: 88SYC

Double Glazed Unit — DGU

Premium double glazed unit for enhanced thermal insulation and acoustic performance. Recommended for casement windows in bedrooms and noise-sensitive spaces.

Colour Finishes

Four Colour Options

Standard white or co-extruded colour profiles. Colour is molecularly bonded at manufacturing — UV-stable and fade-proof for 15+ years.

Classic White

Standard — All series

Jet Black

Co-Extrusion

Stone Grey

Co-Extrusion

Walnut Brown

Co-Extrusion

Manufacturing Technology

Casement-Optimised Co-Extrusion

The 60mm Casement Series is extruded with the hardware clearances and gasket channel geometry specifically designed for side-hung casement operation. The frame profile (60XK) and sash profile (60PKD) are dimensionally matched at manufacture so that every fabricated unit closes flush, compresses the gasket evenly, and locks securely without adjustment.

Frame + Sash System 2.2mm Wall Thickness DGU Compatible IS 12894 Certified

Applications

Glazing Options

15+

Years Lifespan

Lead Content

Where It Works Best

Ideal Applications

The 60mm Casement Series is the preferred choice for a wide range of residential, commercial, and institutional projects.

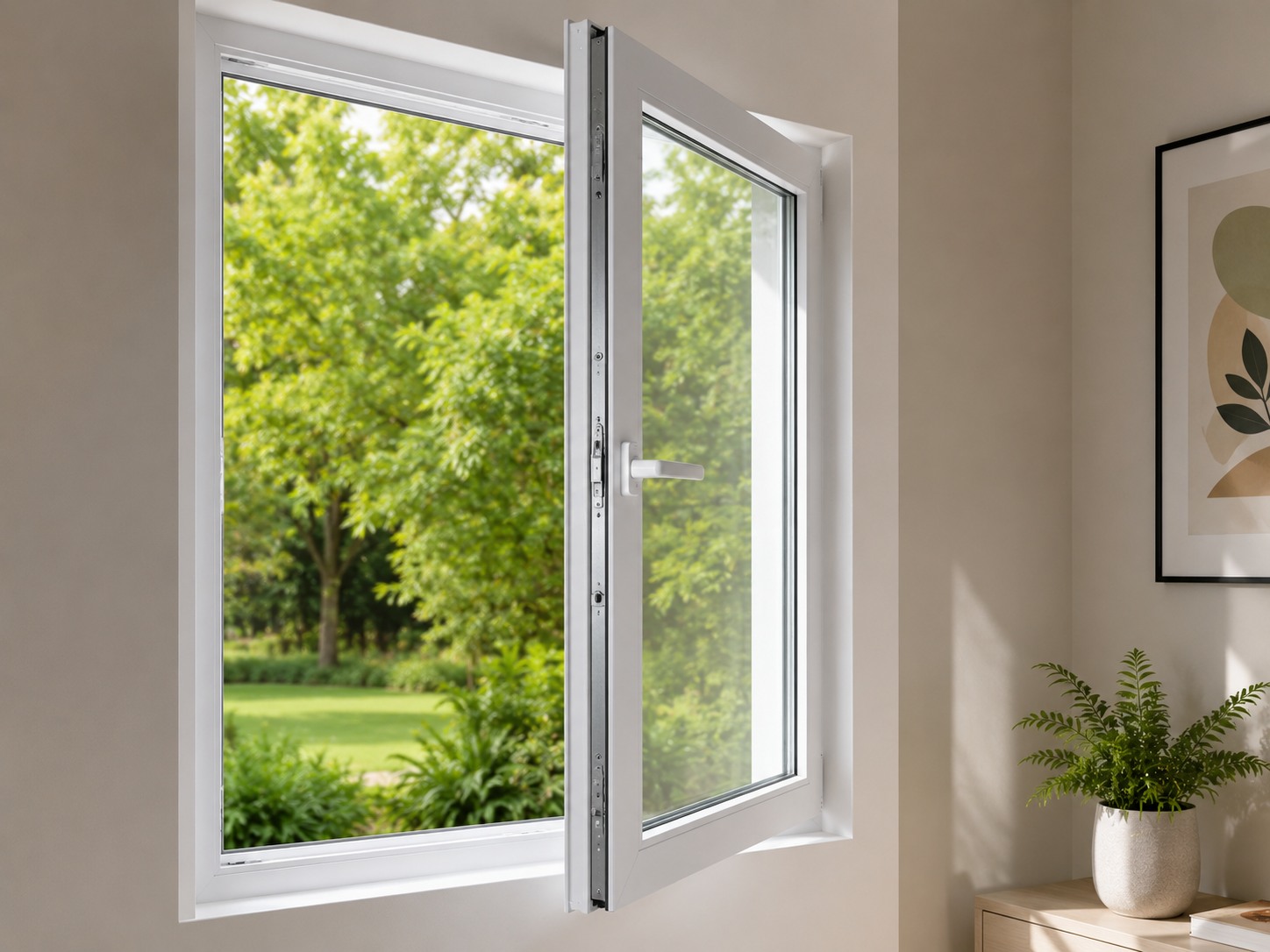

Residential Windows

Casement Windows

Side-hung casement windows provide full-opening ventilation, tight weather sealing, and a clean modern aesthetic. The 60mm system is the most popular casement specification in the GBT range.

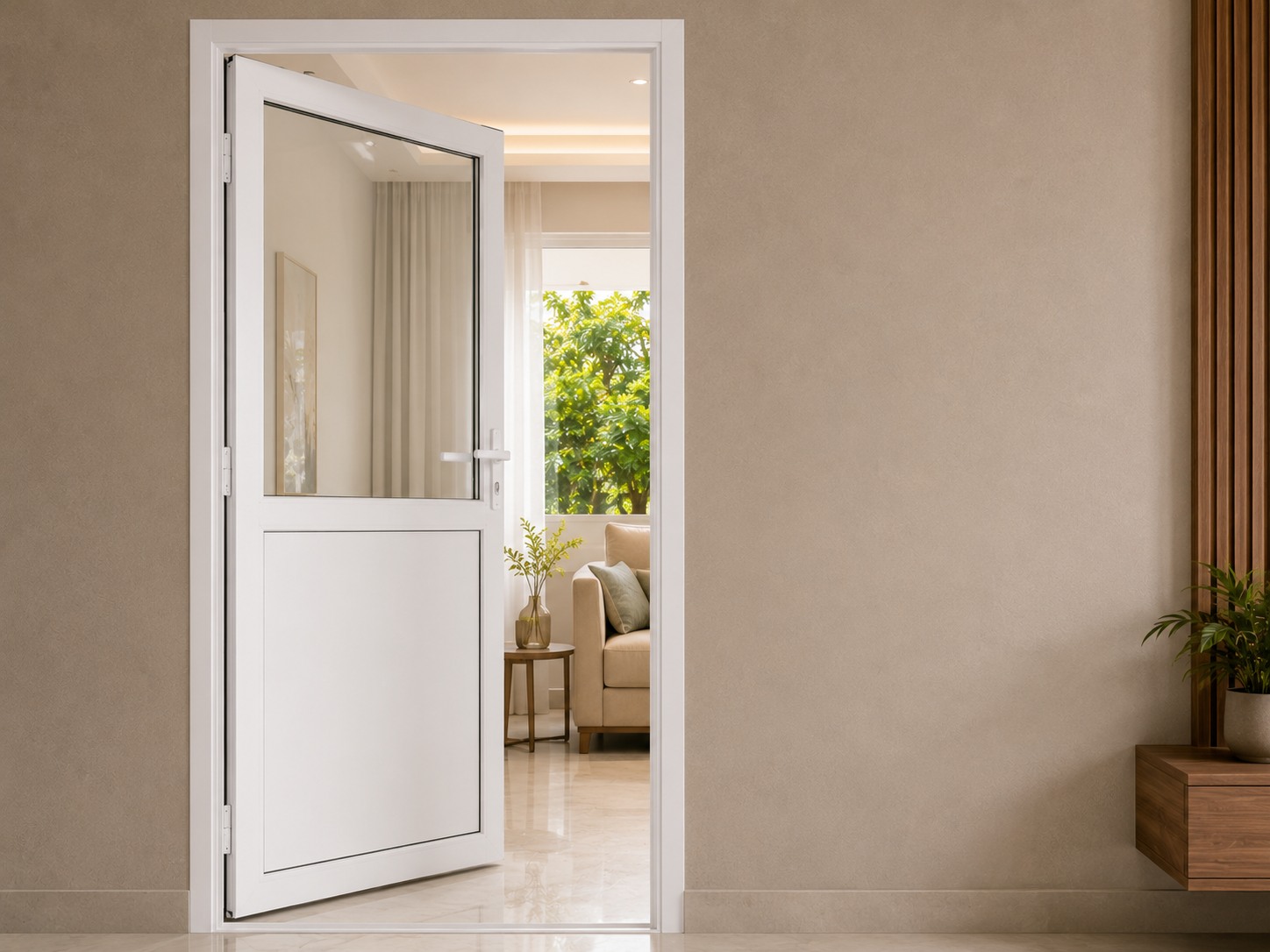

Interior & Exterior Doors

Casement Doors

The same 60mm system produces elegant half-glass and full-glass casement doors for both interior and exterior applications — consistent profile aesthetics throughout the building envelope.

Commercial

Offices & Commercial Buildings

Commercial projects benefit from the 60mm casement's uniform profile family — specifying the same system for windows, entrance doors, and ventilation louvers reduces procurement complexity.

Ventilation

Louver Windows

The 60mm base profile forms the frame for GBT's louver blade system — providing natural ventilation with privacy. Used in bathrooms, utility areas, stairwells, and service passages.
